Saddle connections 90° (pipe connection)

pipe connection

Product Details

Category: Saddle connections
Add to watch list
Request More Information
Product information request Close
Please type the letters and numbers below

* Required Fields

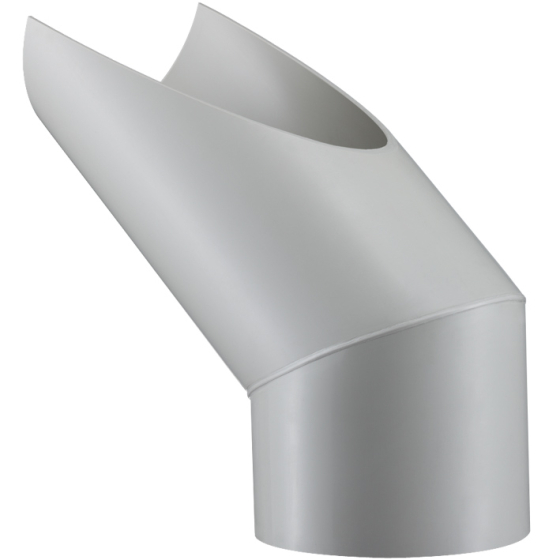

Saddle connections 90° (pipe connection)
Saddle connections 90° (pipe connection) Saddle connections 90° (pipe connection)
Preisliste 2022
PVC, PVC-UV, PVC-C PPs, PP, PE, PPs-el, PVDF

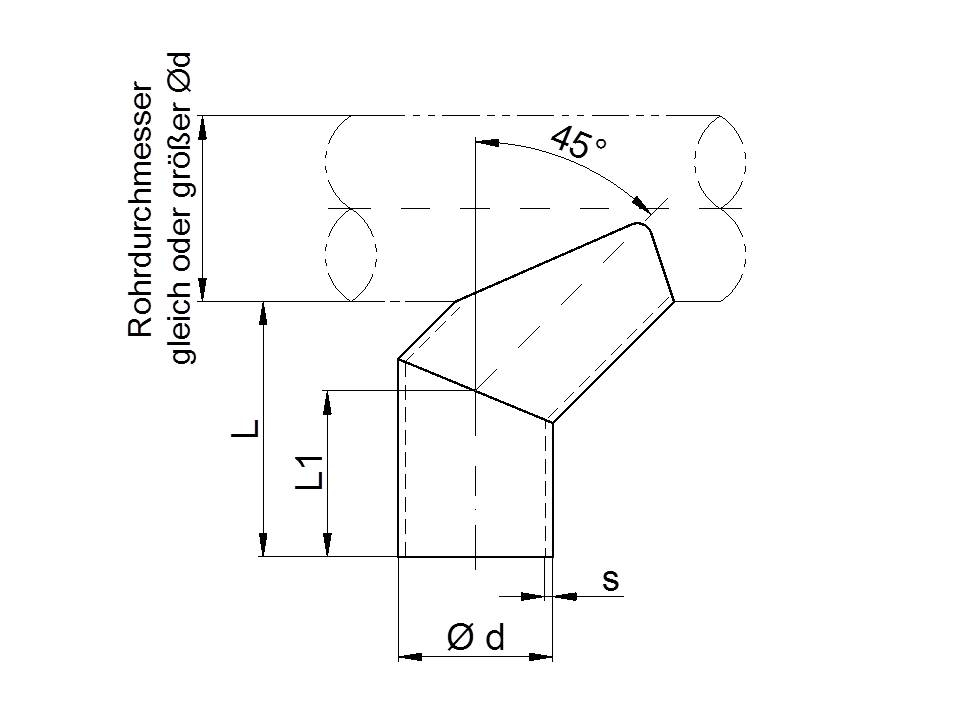

d L L1 s kg L L1 s kg
0050r 100 65 2,4 0,1 100 65 3,0 0,1
0063r 115 68 3,0 0,2 115 68 3,0 0,1
0075r 125 71 2,2 0,2 125 71 3,0 0,1
0090r 135 74 2,7 0,2 135 74 3,0 0,2
0110r 170 93 3,2 0,3 170 93 3,0 0,3
0125r 185 96 1,8 0,4 185 96 3,0 0,3
0140r 200 99 2,8 0,6 200 99 3,0 0,4
0160r 225 113 3,2 0,8 225 113 3,0 0,5
0180r 255 127 2,5 0,8 255 127 3,0 0,6
0200r 275 131 2,5 1,0 275 131 3,0 0,8
0225r 305 147 2,8 1,3 305 147 3,5 1,1
0250r 330 152 2,9 1,6 330 152 3,5 1,3
0280r 355 158 2,9 1,9 355 158 4,0 1,9
0315r 390 165 2,9 2,4 390 165 5,0 2,8
0355r 425 174 2,9 3,0 425 174 5,0 3,5
0400r 475 193 3,2 4,0 475 193 6,0 5,3
0450r 530 223 3,6 6,5 540 223 6,0 7,0
0500r 575 234 4,0 8,0 585 234 7,0 9,8
0560r - - - - 640 246 8,0 13,7
0600r 690 264 5,0 14,0 - - - -
0630r - - - - 715 271 8,0 17,0
0700r 790 385 6,0 24,0 - - - -
0710r - - - - 840 387 8,0 24,5
0800r 880 406 6,3 33,0 920 406 8,0 30,0
Indicate diameter of connecting pipe when ordering.
