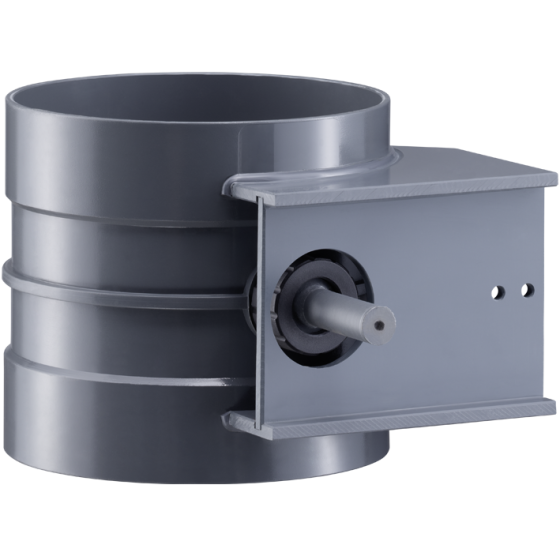

Volume control dampers standard with console for servomotor

for electric or pneumatic actuator

Product Details

Category: Volume control dampers
Add to watch list
Request More Information
Product information request Close
Please type the letters and numbers below

* Required Fields

Volume control dampers standard with console for servomotor
Volume control dampers standard with console for servomotor Volume control dampers standard with console for servomotor
Preisliste 2022
PVC, PVC-C, PVC-UV PPs, PP, PE, PPs-el, PVDF
d L L1 L2 H1 H2 s kg L L1 L2 H1 H2 s kg
0050m 130 35 60 54 37 3,0 1,0 130 35 60 53 37 3,0 0,5
0063m 130 35 60 60 44 3,0 1,1 130 35 60 60 45 3,0 0,5
0075m 130 35 60 66 50 3,0 1,2 130 35 60 66 50 3,0 0,8
0090m 130 35 60 74 57 3,0 1,3 130 35 60 73 57 3,0 0,9
0110m 150 40 70 84 67 3,0 1,4 150 40 70 83 67 3,0 1,0
0125m 150 40 70 92 81 3,0 1,5 150 40 70 91 81 3,0 1,1
0140m 150 40 70 99 88 3,0 1,8 150 40 70 98 89 3,0 1,2
0160m 150 40 70 109 98 3,0 2,1 150 40 70 108 99 3,0 1,3
0180m 170 50 70 119 108 3,0 2,2 170 50 70 118 109 3,0 1,4
0200m 170 50 70 129 118 3,0 2,4 170 50 70 128 119 3,0 1,5
0225m 170 50 70 141 131 3,0 2,5 170 50 70 141 131 3,0 1,7
0250m 170 50 70 154 145 3,0 3,3 170 50 70 153 144 3,0 2,1
0280m 170 50 70 169 160 3,0 3,8 170 50 70 168 159 3,0 2,3
0315m 170 50 70 187 178 3,0 4,5 170 50 70 186 176 3,0 3,0
0355m 175 50 75 209 213 4,0 5,2 175 50 75 207 198 4,0 3,8
0400m 200 60 80 231 235 4,0 5,9 180 50 80 229 220 4,0 4,5
